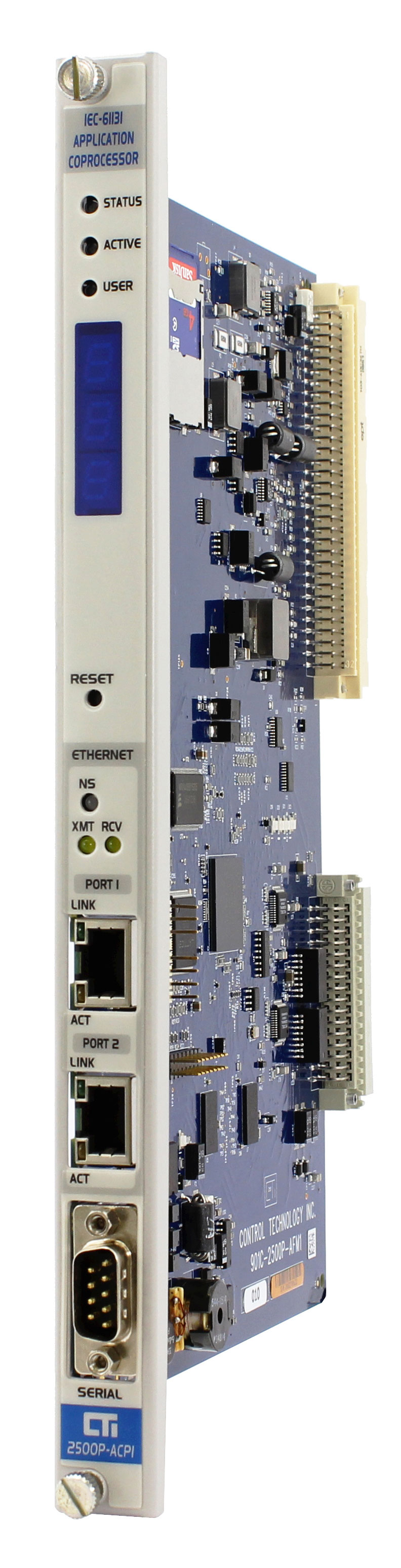

2500P-ACP1 Application Coprocessor

The 2500P-ACP1 module is a general-purpose auxiliary controller that enhances the capabilities of all CTI 2500 Series® and SIMATIC® 505 PLC systems. This Advanced Function Module includes high-speed processing and multi-protocol communications support to provide existing systems with a significant increase in performance, features, and functionality.


NOTE: 2500P-ACP1 works with Simatic®/TI 545/555 CPUs using 2572, 2572-A, or 505-CP2572 Ethernet modules, or using a high-density word interface over the backplane (with performance restrictions).  However, for best performance we recommend CTI 2500 Series® Processors when using 2500P-ACP1.

For help selecting the right Ethernet solution for your needs, see our Tech Tip:
Ethernet Communications: What is the Best Solution for Your Needs?

or click on the link below to get help from an Applications Engineer.
Get Help With Ethernet


Products

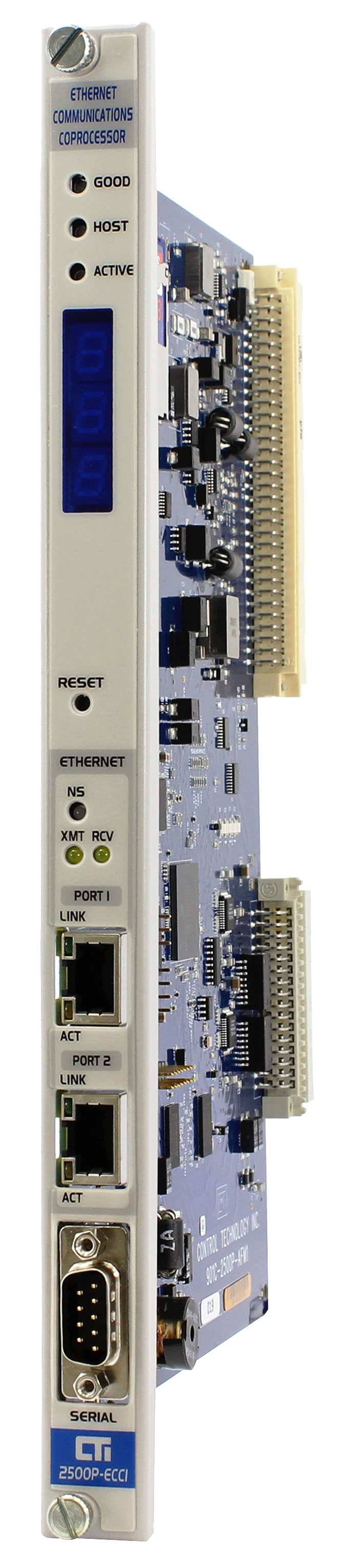

2500P-ECC1 Ethernet Communications Coprocessor

The 2500P-ECC1 Ethernet Communications Coprocessor provides state-of-the-art features and performance for Ethernet communication when using CTI 2500 Series® Processors.  It uses a dynamic memory cache to give extremely quick response to queries from HMI systems, with no dependence on CPU scan time.  It also provides a fully configurable interface for setting up Modbus-TCP, and CAMP client/server communications.  Most importantly, it features a completely new facility which provides peer-peer network communications between PLCs using a new "report on change" protocol - Network Data Exchange.

NOTE: 2500P-ECC1 requires a CTI 2500 Series® Processor for operation.

See a slide show about how the 2500P-ECC1 works.
See a tutorial about Network Data Exchange in the 2500P-ECC1.
See a YouTube video on configuring the 2500P-ECC1.

For help selecting the right Ethernet solution for your needs, see our Tech Tip:
Ethernet Communications: What is the Best Solution for Your Needs?

or click on the link below to get help from an Applications Engineer.
Get Help With Ethernet

Products

2572-B Fast Ethernet TCP/IP Adapter

The 2572-B Fast Ethernet TCP/IP Adapter is the next generation Ethernet network interface module for 2500 Series® or Simatic® 505 controllers. The 2572-B provides connectivity to Ethernet networks using IEEE 802.3, Ethernet II and Transmission Control/Internet Protocol standards, at 10M or 100M speeds.

For help selecting the right Ethernet solution for your needs, see our Tech Tip:
Ethernet Communications: What is the Best Solution for Your Needs?


or click on the link below to get help from an Applications Engineer.
Get Help With Ethernet

Features

  • Direct replacement for 2572-A
  • Compatible with CTI 2572-A, CTI 2572, and Siemens® 505-CP2572
  • New IP address display on front panel
  • No serial connection required to set IP address
  • DHCP address switches eliminated (contact CTI if your application uses DHCP)
  • Auto-sensing for 10/100Mbps networks
  • TCP/IP support includes UDP and TCP
  • Supports Modbus-TCP and Ethernet/IP protocols
  • Remote programming over Ethernet
  • MMI/HMI connectivity
  • DDE and OPC support available
  • Built-in web server for diagnostics
