Digital output modules are available in densities of 8 and 16 points. A full range of voltages from 12VDC to 240VAC and output currents up to 1A per channel are supported.  A simulator module is available for use in development and commissioning of new Compact I/O systems.

The 2500C-16-DIDO-SIM Module allows the user to simulate discrete inputs and outputs. Switches are used to simulate discrete inputs and the LEDs on the front of the module indicates the status of the assigned outputs. This module is an excellent debugging tool for any application
development.

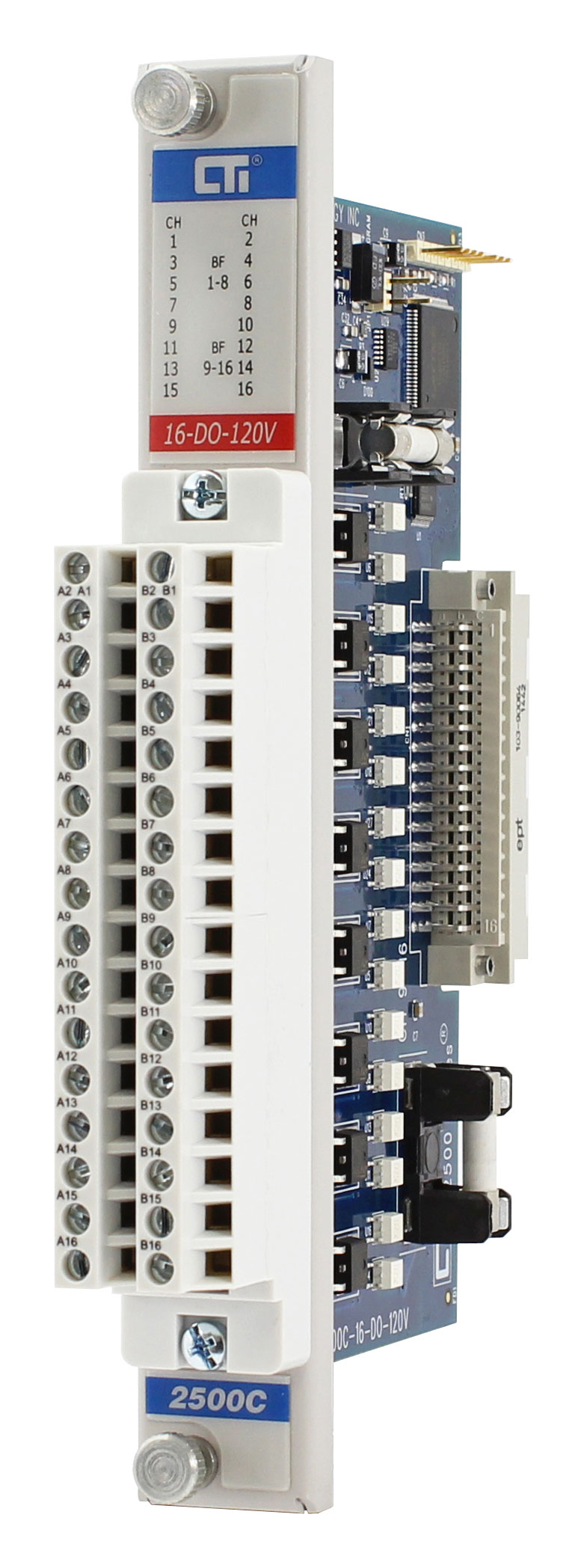

The 2500C-16-DO-120V module outputs a wide range of AC voltage signals. It is designed to provide 16 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 120VAC. Front panel LEDs provide visual indication  for output and fuse status.

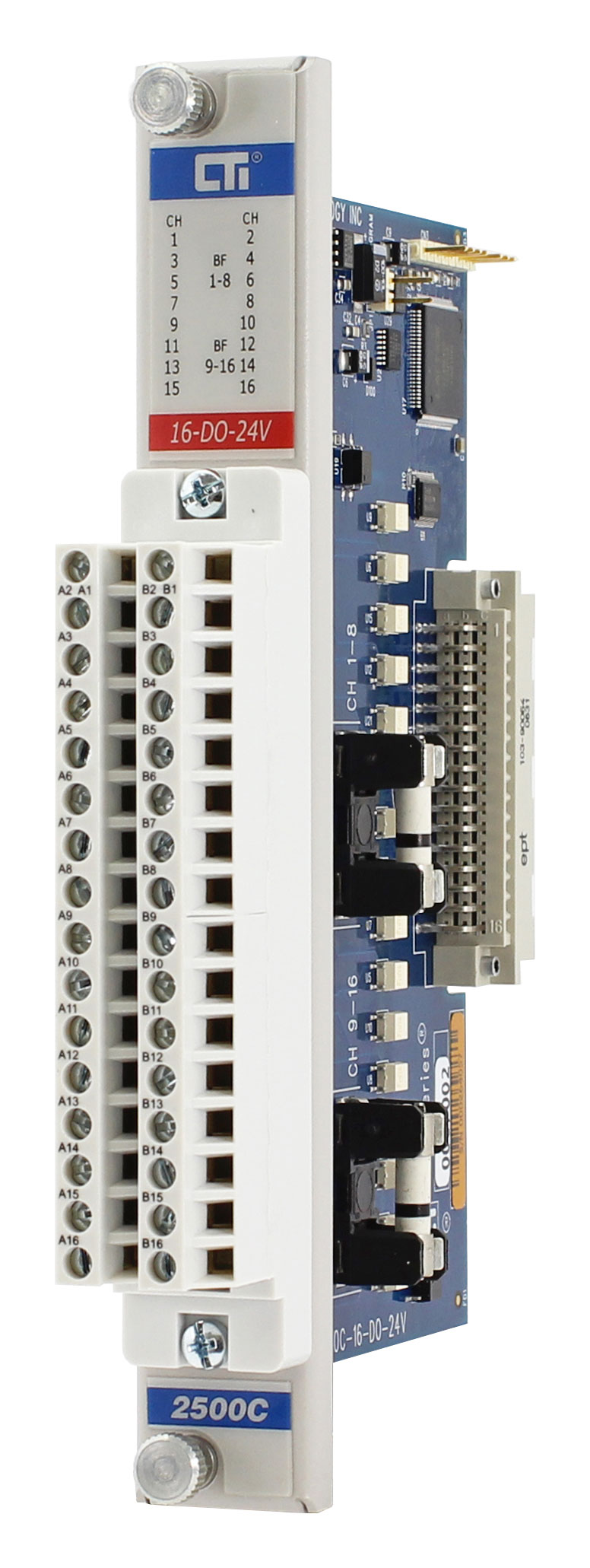

The 2500C-16-DO-24V module outputs a wide range of DC voltage signals. It is designed to provide 16 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 24VDC. Front panel LEDs provide visual indication for output and fuse status.

The 2500C-8-IDO-120V module outputs a wide range of AC voltage signals. It is designed to provide 8 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 120VAC. Front panel LEDs provide visual indication  for output and fuse status.

The 2500C-8-IDO-24V module outputs a wide range of DC voltage signals. It is designed to provide 8 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 24VDC. Front panel LEDs provide visual indication  for output and fuse status.
