Digital output modules are available in densities of 8, 16, and 32 points. Voltages range from 12VDC to 240VAC, and output currents up to 2A per channel are supported.

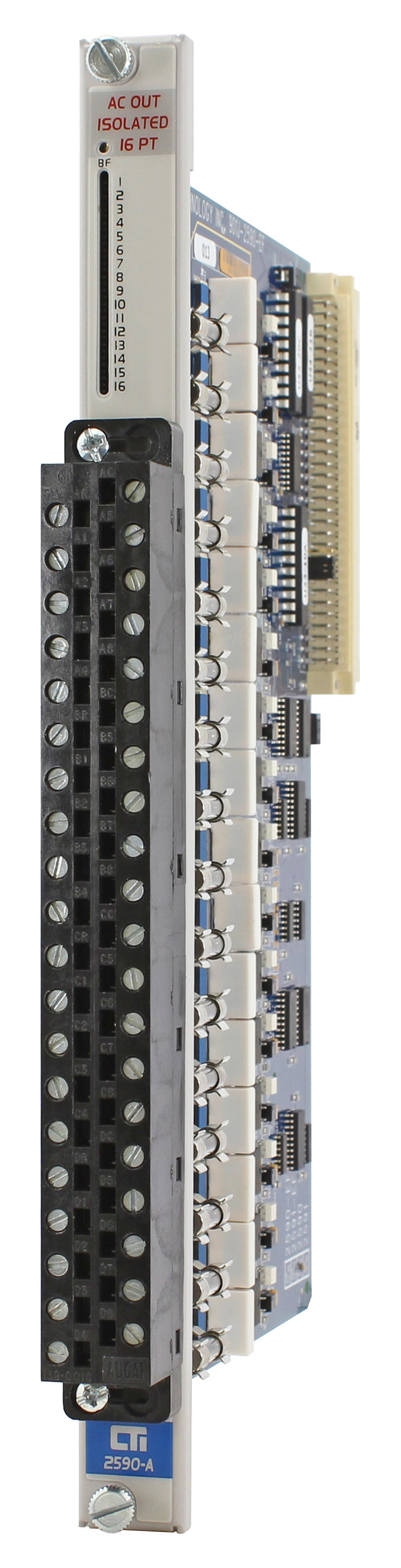

The 2590-A 16-point discrete output module provides sixteen isolated outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The 2590-A is designed to switch externally supplied 20 to 132 VAC.
The 2590-EF 16-point discrete output module provides sixteen isolated outputs from the CTI 2500 Series® or Simatic® 505 I/O base with front panel accessible fuses. IMPORTANT NOTE: THIS PRODUCT WAS MATURED ON DECEMBER 31, 2019 AND SHOULD NOT BE USED IN NEW DESIGNS. THIS PRODUCT IS REPLACED BY 2590-A, WHICH USES INTERNAL FUSES.

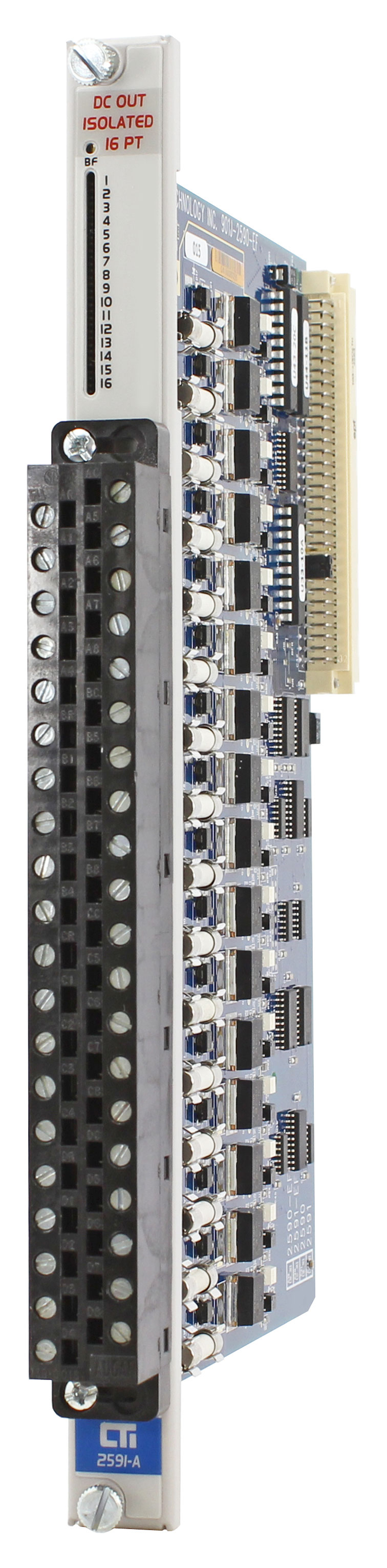

The 2591-A 16-point discrete output module provides sixteen isolated outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The 2591-A is designed to switch externally supplied 11 to 146 VDC.

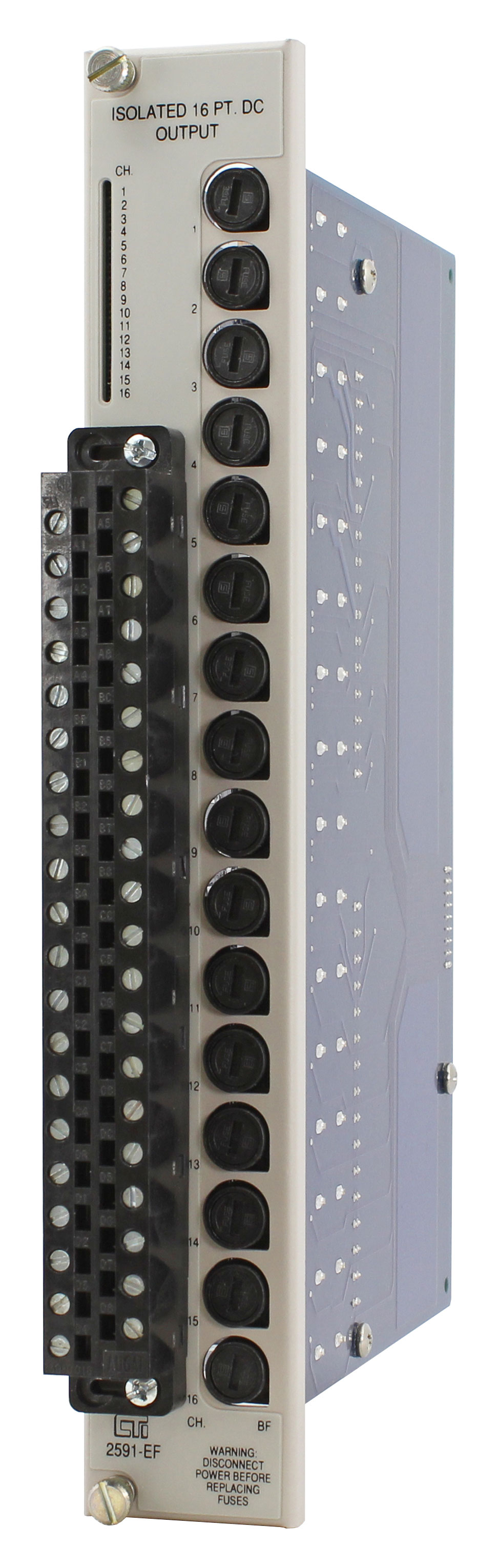

The 2591-EF 16-point discrete output module provides sixteen isolated outputs from the CTI 2500 Series® or Simatic® 505 I/O base with front panel accessible fuses. IMPORTANT NOTE: THIS PRODUCT WAS MATURED ON DECEMBER 31, 2019 AND SHOULD NOT BE USED IN NEW DESIGNS. THIS PRODUCT IS REPLACED BY 2591-A, WHICH USES INTERNAL FUSES.

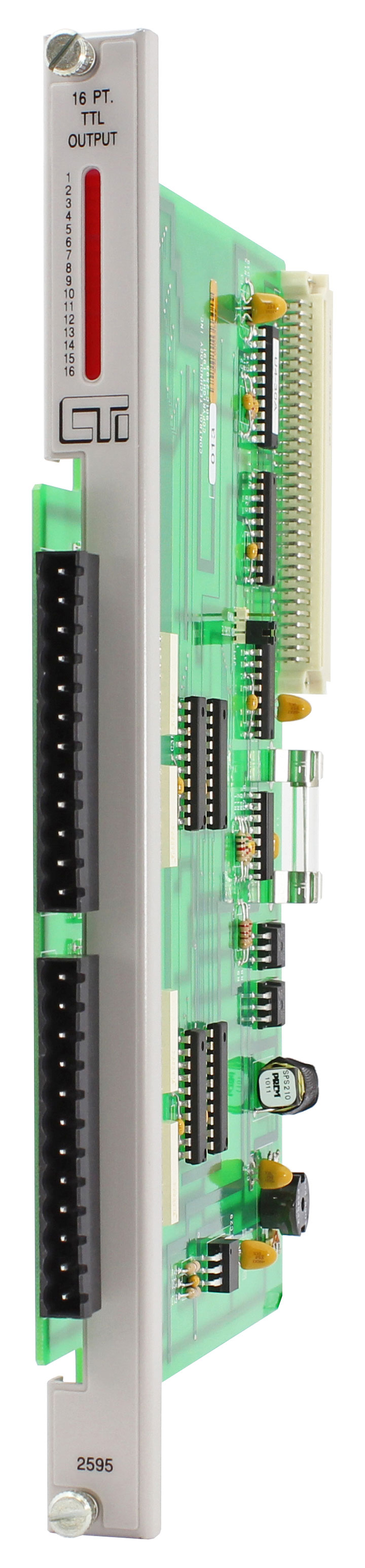

The 2595 16-point TTL output module provides sixteen TTL driven outputs from the CTI 2500 Series® or Simatic® 505 I/O base.

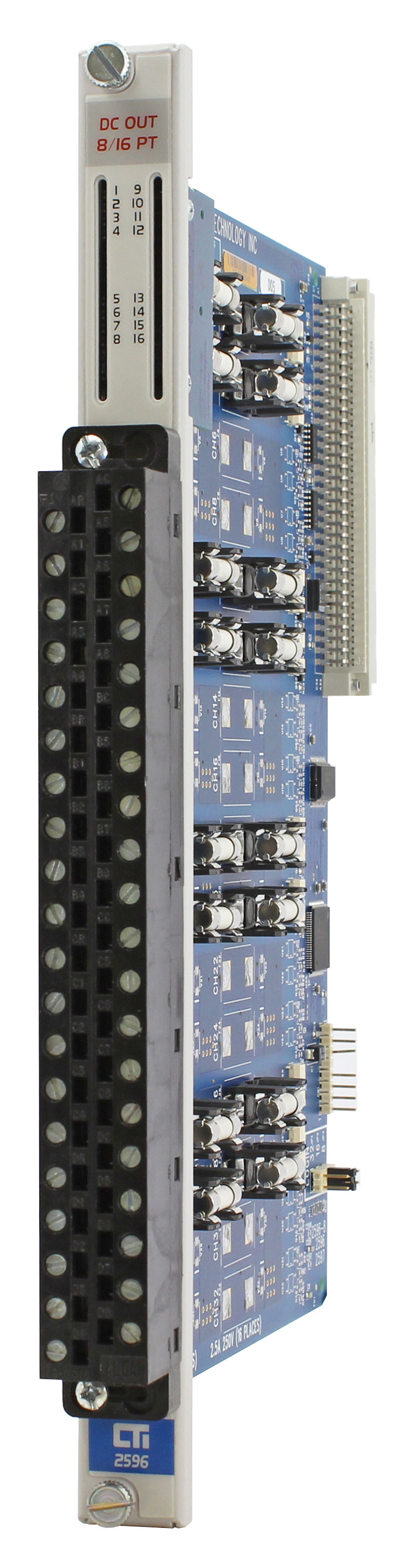

The 2596 provides 8 or16 11-125 VDC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state outputs can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.

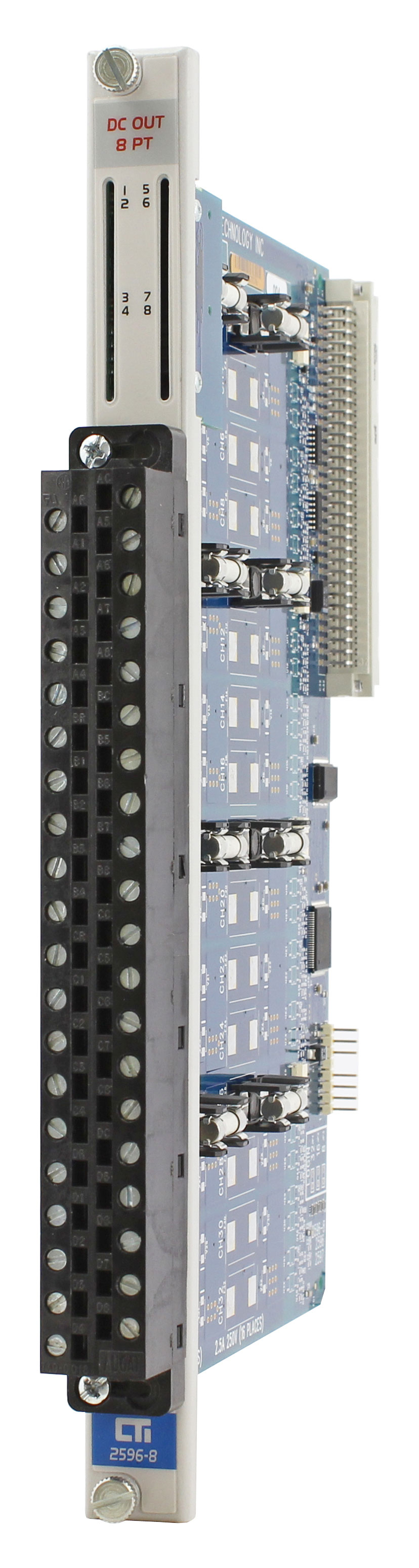

IMPORTANT NOTE: THE 2596-8 HAS BEEN MATURED. IT IS DIRECTLY REPLACED BY THE 2596 8/16-POINT 11-125VDC OUTPUT MODULE. The 2596-8 provides 8 11-125 VDC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state outputs can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.

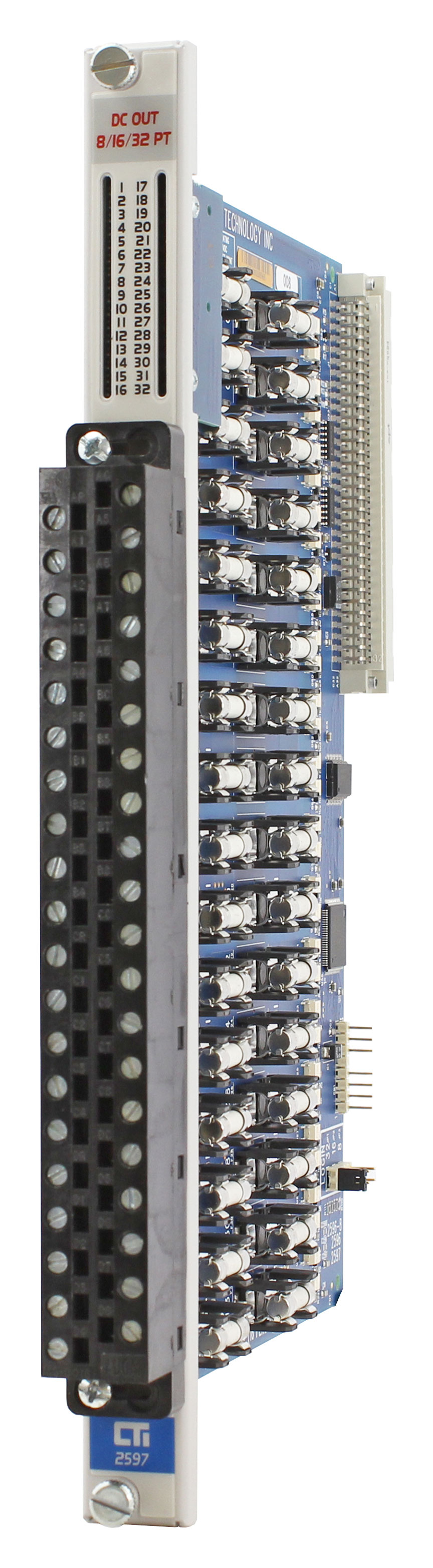

The 2597 provides 8,16,or 32 11-125 VDC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state outputs can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.
The 2598 provides 8 or 16 11-240 VAC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state output circuits can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.
The 2598-8 provides 8 11-240 VAC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state output circuits can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.

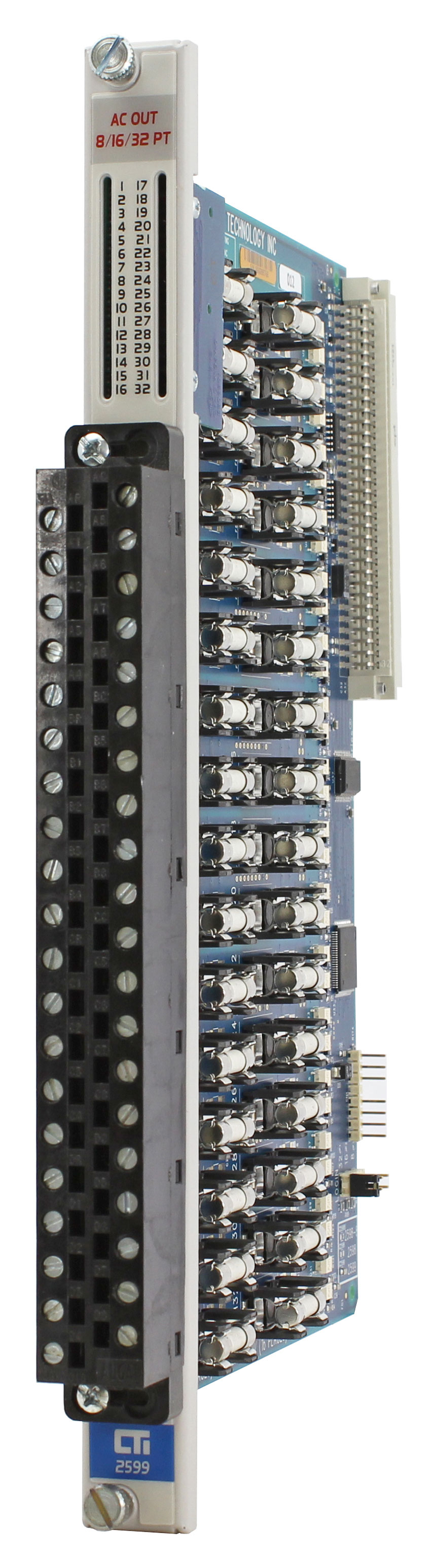

The 2599 provides 8, 16, or 32 11-240 VAC outputs from the CTI 2500 Series® or Simatic® 505 I/O base. The solid-state output circuits can be used to switch on or off external devices such as pilot lamps, motor starters, or solenoids.
