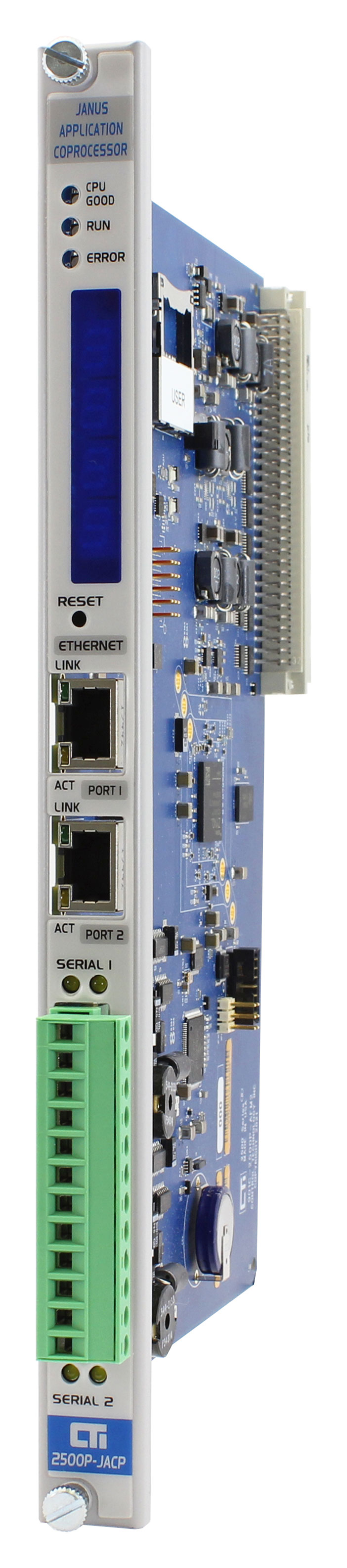

2500P-JACP Janus Application Coprocessor

The 2500P-JACP Janus Application Coprocessor is a general-purpose auxiliary controller that enhances the capabilities of all CTI 2500 Series® and SIMATIC® 505 PLC systems. This Advanced Function Module is based on Janus technology and includes high-speed processing and multi-protocol communications support to provide existing systems with a significant increase in performance, features, and functionality.

Because of its broad communications capabilities and ability to store large amounts of data on-board, the 2500P-JACP is ideal for Edge Computing applications, bringing computation and data storage closer to the location where it is needed, to improve response times and save bandwidth.

The 2500P-JACP runs as a PLC coprocessor performing complex logic/math functions, data logging, and communications with external devices. Although the 2500P-JACP can operate as a standalone controller, the control application generally requires data transfer between a host PLC and the module. Two different data transfer options are provided:

Block Transfer Driver: The 2500P-JACP enables the user to configure the Block Transfer Driver which optimizes the exchange of up to 2048 data points with a Siemens, TI, or CTI PLC using the special function I/O backplane protocol. The application can select to exchange V, X/Y, WX/WY, or Control Relays for continuous Read or Read/Write. Note this feature allows the 2500P-JACP to be used with existing Simatic/TI 545 and 555 PLCs.

Data Cache: Proprietary link offering enhanced data throughput to CTI 2500 Series® controllers via a dedicated Ethernet connection. Supports up to 4096 variables mapped to any PLC memory type (including Loop/Alarm variables).  The 2500P-JACP includes two external 10/100/1000Mb Ethernet ports with automatic
detection of network speed, duplex mode, and cable wiring. An aliasing and isolation feature allows the two network ports to exist on two separate networks, a useful feature for isolating networks of drives or other I/O devices from the main plant communications network.

Need help selecting an Ethernet solution?  Click on the link below to get help from an Applications Engineer.
Get Help With Ethernet


  • Adds IEC-61131 languages, functions, and memory organization features to existing CTI 2500 Series® and SIMATIC® 505 controllers
  • Advanced diagnostics and module status provided by the embedded web server
  • Embedded client/server protocols perform data transfer based on configuration tables without the need for any additional logic in the PLC or 2500P-JACP application program
  • High-speed data transfer and RTC time synchronization with CTI controllers
  • Supports user-created graphics pages containing variable data which can be accessed via web browser


  • CAMP Client (TCP, UDP, Multicast)
  • CAMP Server
  • Block Transfer Driver for communication with Simatic/TI 545 and 555 processors
  • Open Modbus (Client, Server)
  • Ethernet/IP Scanner, Adapter, Tag Client, Explicit Message Client, Explicit Message Server, Flex I/O Scanner
  • Profinet Controller and Device (Future)
  • Serial Modbus RTU (Master, Slave)
  • General ASCII Send/Receive
  • TCP/UDP Management Functions
  • Network Data Exchange
  • MQTT
  • OPC-UA Server
