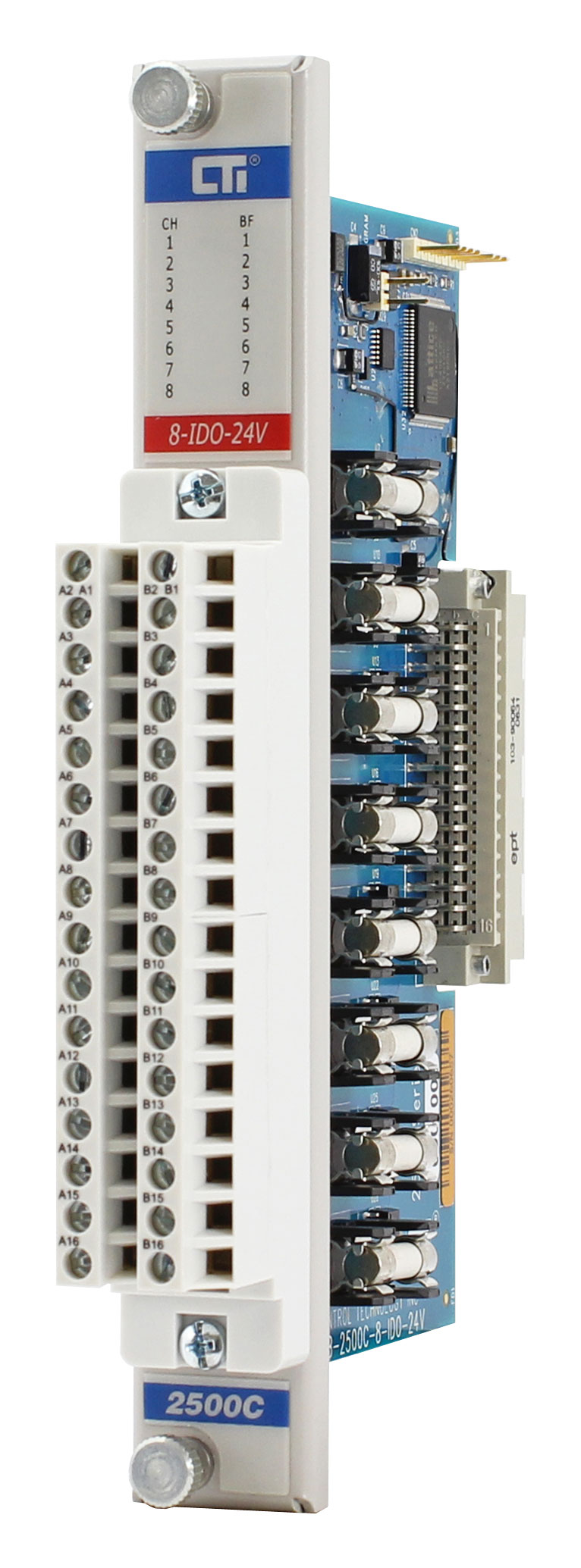

2500C-8-IDO-24V 8 Isolated 24VDC Outputs

2500C-8-IDO-24V 8 Isolated 24VDC Outputs

The 2500C-8-IDO-24V module outputs a wide range of DC voltage signals. It is designed to provide 8 solid state output circuits to switch  on or off external devices such as pilot lamps, motor starters or solenoids using an externally supplied 24VDC. Front panel LEDs provide visual indication  for output and fuse status.

Features

  • Single wide module
  • 8 channels isolated channel-to-channel
  • Output voltage 11-30 VDC
  • Output current 2.0A max
  • Each channel is individually fused
  • Sourcing or sinking Outputs
  • Channel On/Off Status Indication
  • Blown fuse indication and reporting for each channel
  • Uses 2500C-32F Connector
  • Module supports hot swapping
